Statistics and Data
Statistics and Data
For each stream, OvenStudio LLHLS collects and displays ingress/egress information and streaming metadata.
To view Streaming Information

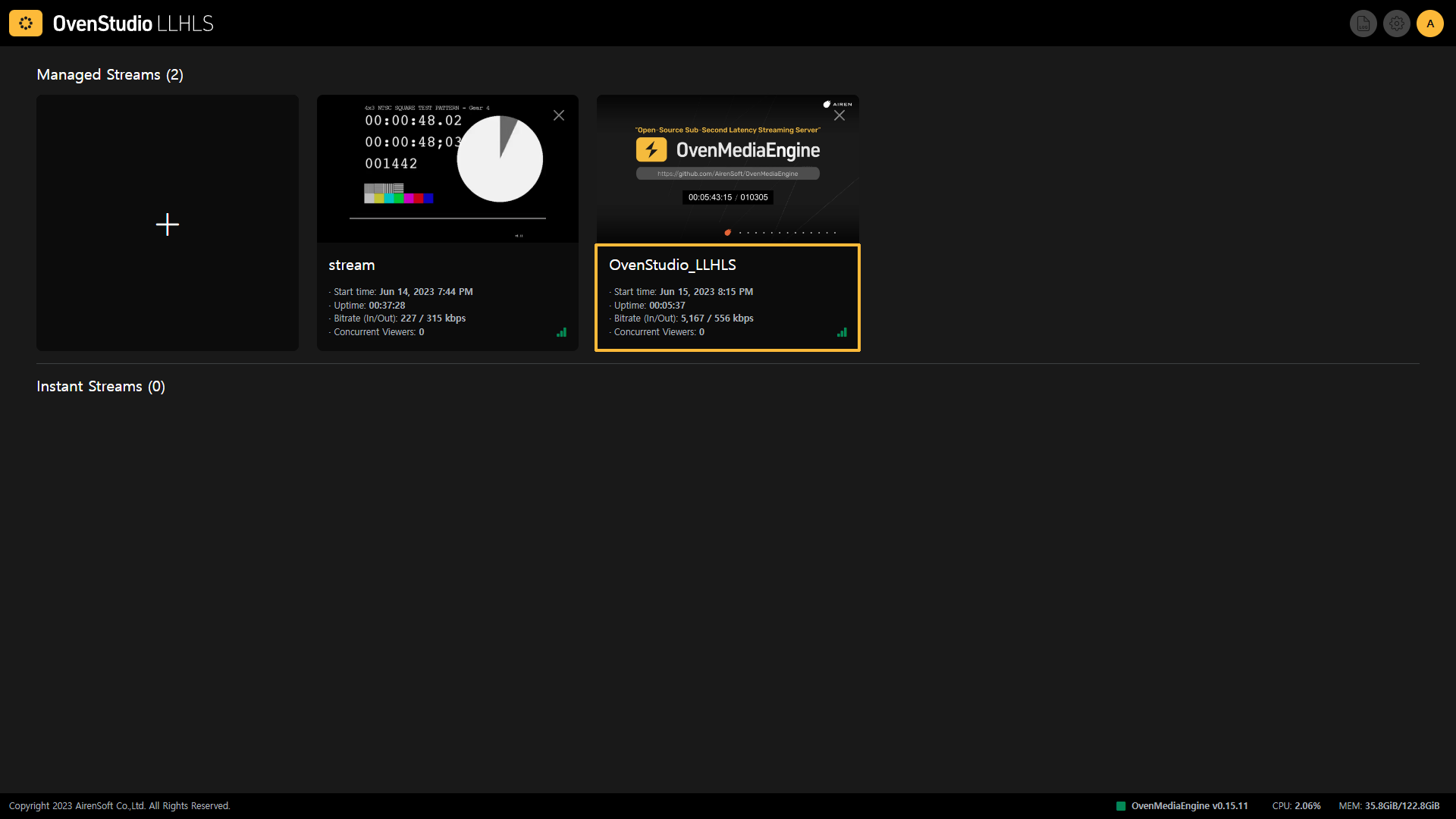

Basic streaming data in OvenStudio LLHLS can be found in the information displayed in the Streaming box on the main page.
When the streaming started? - Start Time
How long the stream has been running? - Uptime
How many bitrates went in and out? - Bitrate (In/Out)
How many concurrent viewers? - Concurrent Viewers

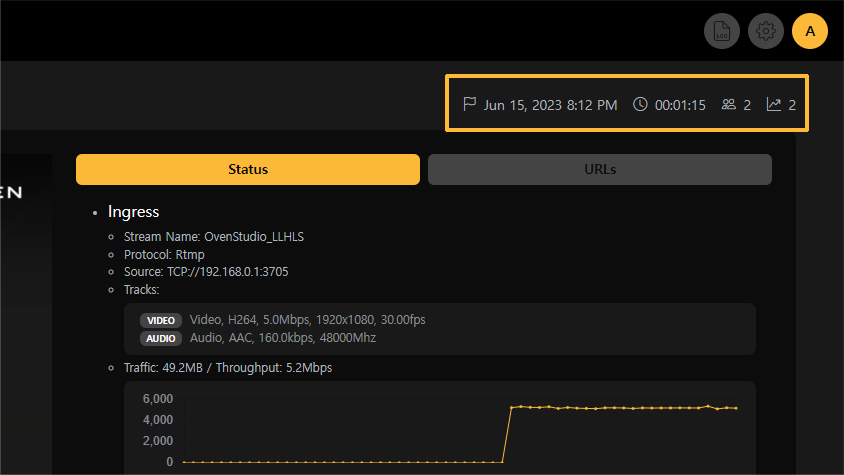

You can also click on the streaming box to enter the detail page, which will display basic streaming data in the top right corner.
When the streaming started? - Flag Icon
How long the stream has been running? - Clock Icon
How many concurrent viewers? - Users Icon
What is the cumulative number of viewers? - Graph Icon
To view Ingress Source Data
If you are currently streaming with OvenStudio LLHLS, click the Streaming box to enter the stream detail view page.

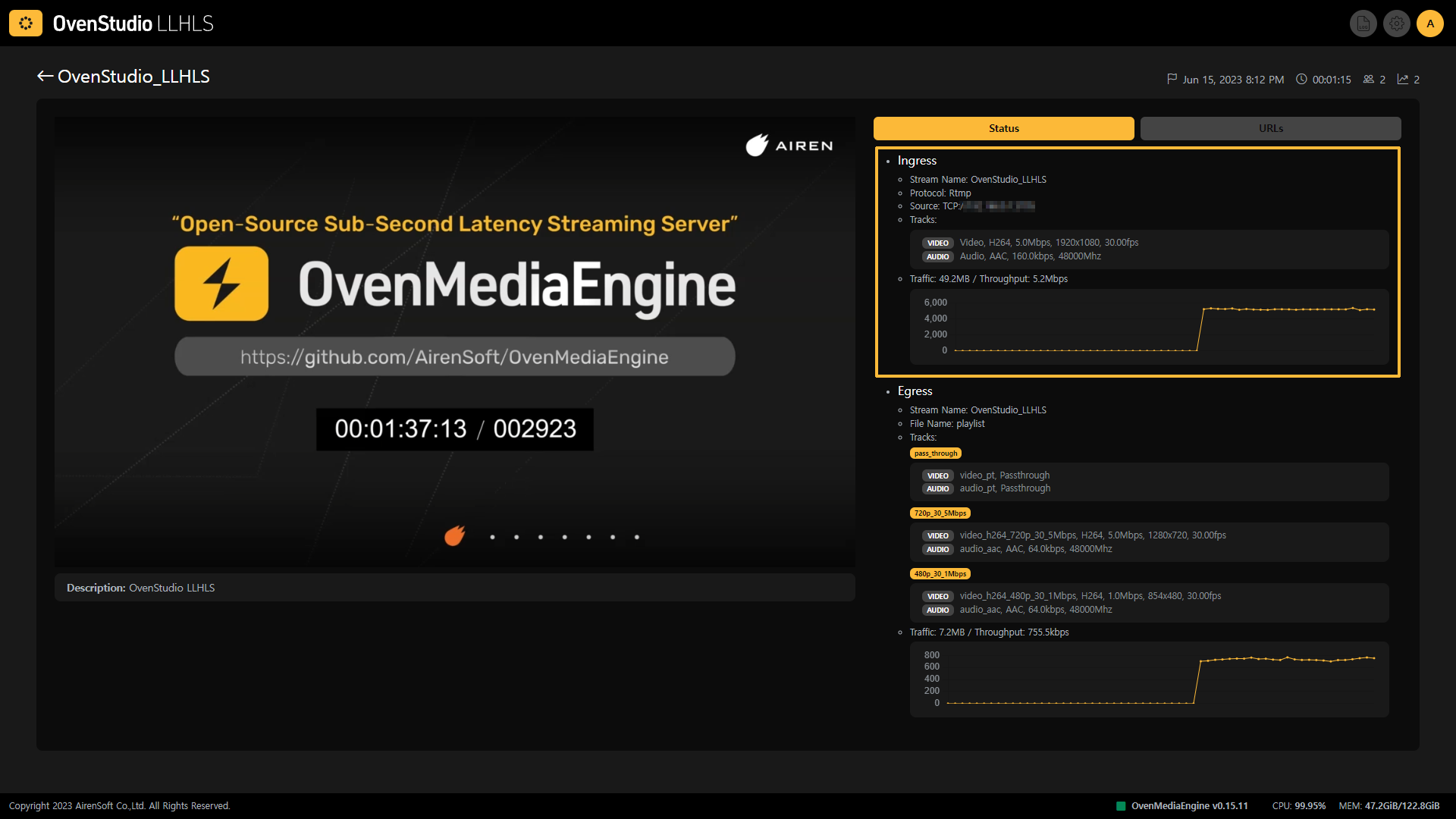

In the [Status] tab, under [Ingress], you can see the data from a media source that have been ingested into OvenStudio LLHLS.
What protocol are you using to ingress into OvenStudio LLHLS? - Protocol
Where is the media source being ingress from? - Source
What is the video and audio metadata of the media source being ingressed? - Track
What is the total amount of data transferred? - Traffic
How much data is currently being processed? - Throughput
To view Egress Source Data
If you are currently streaming with OvenStudio LLHLS, press the Streaming box to access the stream detail view page.

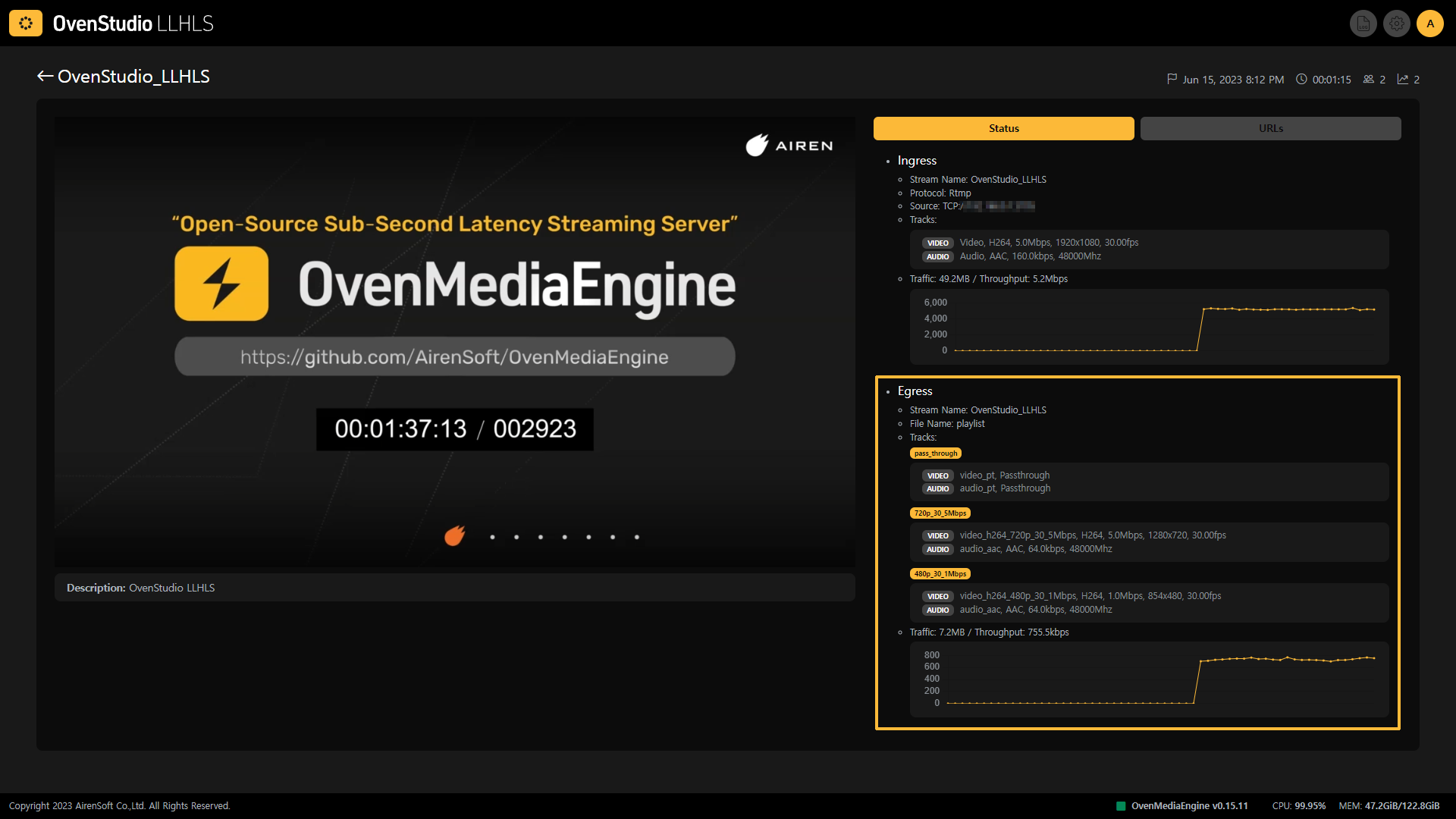

Under [Egress] on the [Status] tab, you can see the data for the media that is being streamed externally from the OvenStudio LLHLS.
What is the video and audio metadata in the egress media? - Track
What is the total amount of data transferred? - Traffic
How much data is currently being processed? - Throughput
To view Concurrent Viewer Data
There are two ways to view the number of viewers for your current stream in OvenStudio LLHLS.
On the OvenStudio LLHLS, the Streaming box for each stream will display the number of viewers. You can easily see the viewer count as part of the Streaming box information.
Or clicking on the Streaming box will take you to the detail view page for that specific stream. In the upper right corner of the detail view page, you will find the number of viewers displayed. This provides a more detailed view of the stream, including real-time viewer count information.
To view System Status

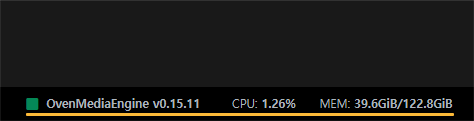

The footer at the bottom of any OvenStudio LLHLS page shows the Version of OvenMediaEngine currently used by OvenStudio LLHLS, as well as the Usage of CPU and Memory.
